홈 /제품 소개/동물용 먹이 펠릿화 기계/4000L Powder Single Shaft Paddle Mixer Animal Feed Plastic Pellets Kneading Machine

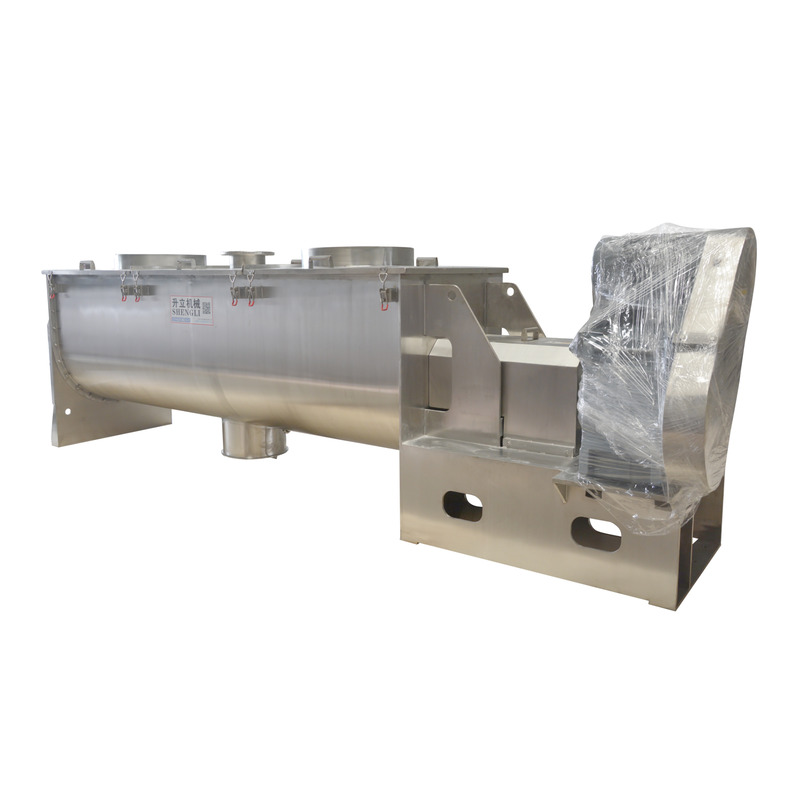

4000L Powder Single Shaft Paddle Mixer Animal Feed Plastic Pellets Kneading Machine

1 set
MOQ
$14,800.00(>=1 sets)
가격
4000L Powder Single Shaft Paddle Mixer Animal Feed Plastic Pellets Kneading Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Mixer Type: Paddle
Barrel Volume (L): 4000L
Material Processed: Plastics, Chemicals, Food, Medicine
Max. Loading Volume (L): 2400 L
Range of Spindle Speed(r.p.m): 5 - 27 r.p.m
Max. Loading Capacity: 2400KG
Weight (KG): 3500 KG
Material: SUS304, Carbon steel Q235, sus 304 for contact part, carbon steel for non-contact part
Condition: New
Product Type: Powder mixer
Application: Powder
Additional Capabilities: heating/cooling/weighing
Voltage: 3 phases
Dimension(L*W*H): refer to drawing
Power (kW): 22 kW
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: food powder mixing, Chemical mixing, all powder mixing
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Gear, Bearing, shaft
Product name: 4000L single shaft paddle mixer
Motor and gear box brand: Chinese famous brand
Sealing: Packing sealing + air purged sealing
Valve: Pneumatic valve
Clearance: ~5mm
Inlet: According to request
Control box: on & off mixer, open & close valve, speed adjustment
Inverter: 30kw
Electrical elements brand: CHINT
기본 정보
결제 및 배송 조건
Packaging Details: wooden case
Supply Ability: 30 Set/Sets per Month
제품 설명
Products Description

SIngle shaft paddle mixer

Horizontal single shaft mixer is equipped with special designed paddles, which is widely use to mix granules and granules
contained material, such as plastic granules, seasoning material, dissolved medicines, and food particles.
Paddle does not only have less damage to the granules, but also less resistance in mixing process, which enable the mixer to run steadily.
Standard 4000L horizontal single shaft paddle mixer drawing

1. Flexible material selection

Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, different
material can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing,
mirror polishing, all can be used in different parts of a mixer

2. The driven unit

Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer. Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

3. High efficiency mixing unit

Different main shaft agitators can be equipped according to the properties of raw materials.
The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4. Excellent discharging unit

The drive types of valve are Manual, pneumatic, and electric.
Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5. Various inlets

Various inlets on the top cover of the barrel can be designed according to different situations.
They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole. The top cover can be designed as
fully-opened lid for easy cleaning.

6. Powerful auxiliary components

Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation
jacket sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.
7. Process working flow
Company Profile
Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 30 years ,we go deeply mixing processing filed and related technology, devote to research different kinds of mixer, modify and perfect existing mixing system, and develop new-type mixer equipment..Under working experience, we developed mixer processing machinery independently.
With modern processing method, strict product management, high quality ,and professional service team. Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems, providing more suitable mixer, promoting upgrades, and creating maximum value for customers.
Why Choose Us
1) Specialized in powder mixer over 30 years
2) CE, ISO certified
3) Over 15 years exporting experience
4) 1 Year warranty, lifetime service and spare parts
5) 12 hours response time
